A risk assessment tells you what level of protection you need; our expert design service creates the exact blueprint for how to achieve it. We engineer comprehensive Lightning Protection Systems (LPS) that are fully compliant with NFPA 780 and IEC 62305-3, ensuring every component works in perfect harmony to protect your structure.
An effective Lightning Protection System is far more than just placing rods on a roof. A flawed or generic design can lead to catastrophic system failure, property damage, and safety risks. A professional, custom-engineered design is the only way to guarantee that your investment provides real protection.

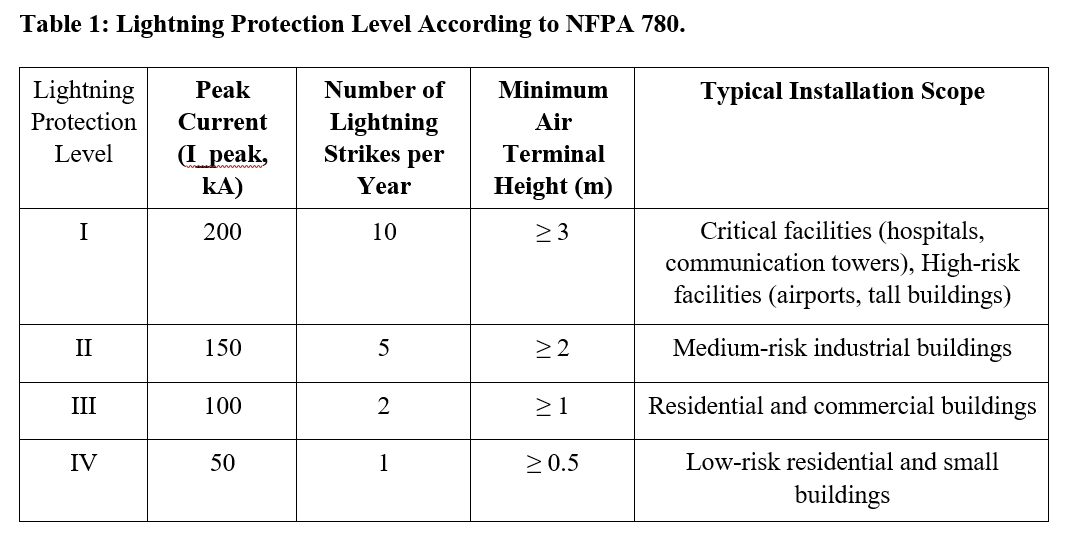

Our design process is built around the four established Lightning Protection Levels (LPL), ensuring your solution is both technically effective and economically optimized for your specific facility type.
Our design philosophy is to create an integrated system that safely intercepts lightning, conducts its immense energy to the ground, and disperses it harmlessly. This is achieved through a meticulous, multi-stage process.

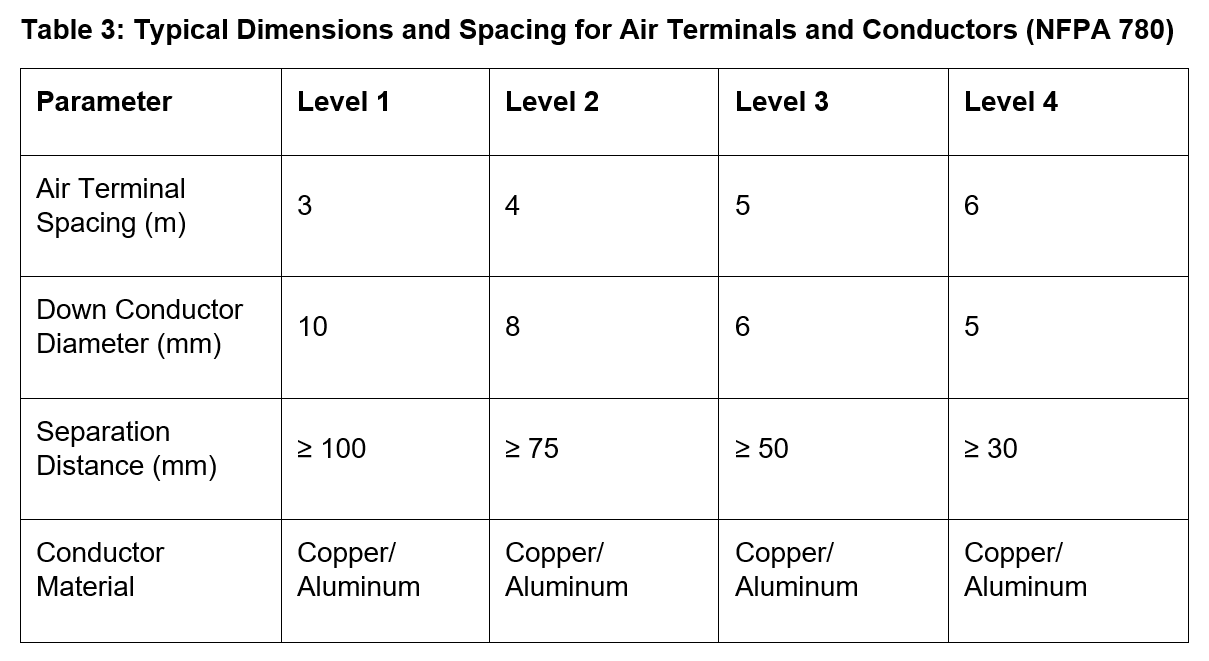

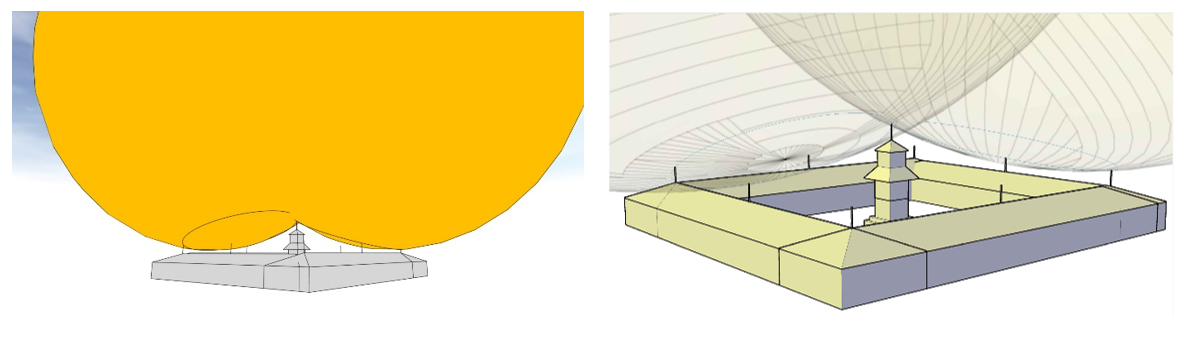

This is the uppermost part of the LPS, designed to be the intended point of contact for a lightning strike. We use proven engineering models like the Rolling Sphere, Protection Angle, and Mesh methods to determine the precise placement of air terminals, ensuring complete coverage for your entire structure, especially vulnerable edges and corners.

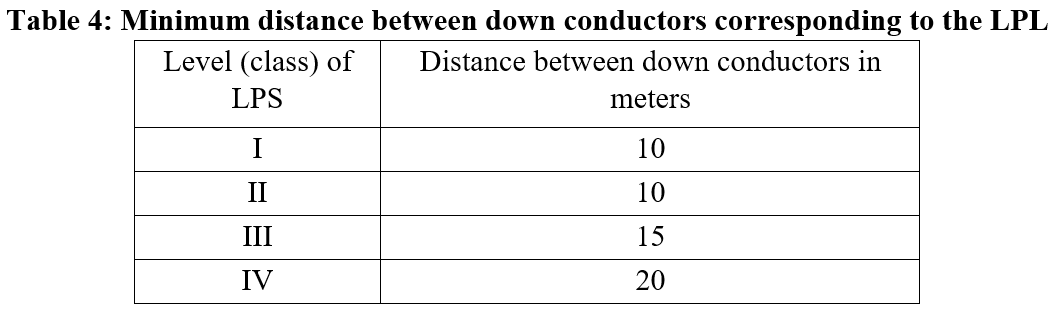

Once intercepted, the lightning current must be safely guided to the ground. We design the shortest and most direct path using multiple, parallel down-conductors. Their placement, spacing, and material are critical for preventing dangerous side-flashes and ensuring the current is managed effectively.
The final, crucial step is to disperse the lightning current into the earth. We design robust earthing systems (Type A or Type B) based on your structure, soil resistivity, and the sensitivity of your internal equipment. A properly designed earth termination is essential for protecting both your structure and your critical electronic systems.
When you partner with us for your LPS design, you receive more than just a drawing. You get a complete, certified plan for execution.
Detailed CAD drawings that adhere strictly to NFPA 780 (and IEC 62305-3) standards.
A complete list of all required components, ensuring quality and cost-effectiveness.
Our designs are coordinated with your building plans to utilize existing metallic structures where possible, saving costs and improving aesthetics.
The final design documentation contains all the information needed for a correct, safe, and complete installation.
